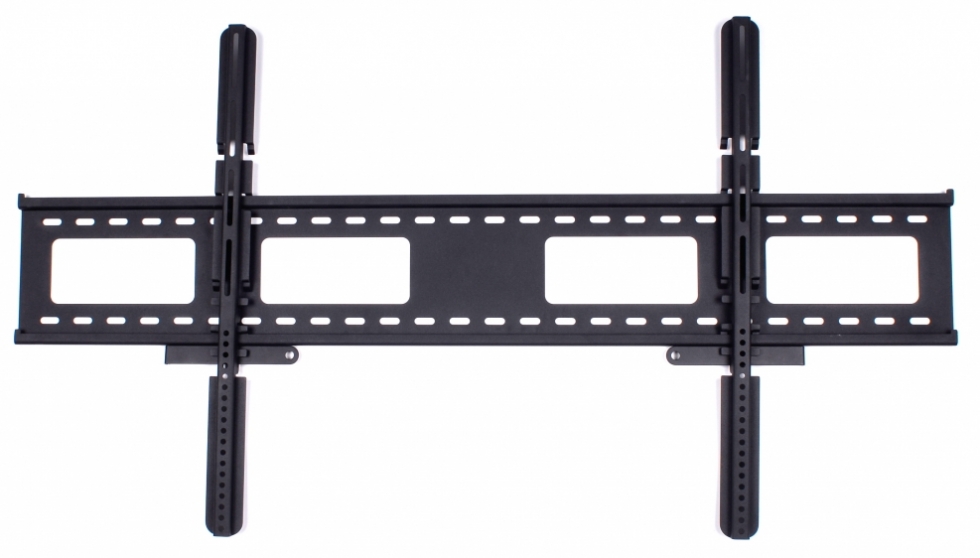

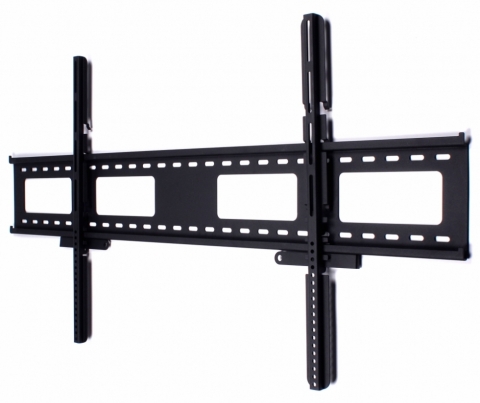

UF-PRO400 Extra-large Wall Fixed TV Mount
Patent Pending V-Bar technology - allows for quick and easy vertical and horizontal adjustment post-installation. With its very slim design, the UF-PRO400 fixed wall mount is designed for very large flat panel displays. Can be mounted as close as 1.22" from the wall. Attaches to 3 or 4 studs up to 52" apart and concrete or aggregate walls with included hardware. Fits screens from 60" to 100".
- Max load 400 lbs (181.4Kg)
- Fully assembled mounting plate
- Slim design only 1.22" deep but allows for room for cabling Universal - no screen adapter necessary
- VESA Compliant – all standards
- All screen and wall mounting hardware included
- Includes security hardware and accepts padlocks Manufacturer's Limited Lifetime Warranty
Model code:
UF-PRO400
Available in:
black,silver
UPC Code (black):
856476001221
Retail packing:
yes
Whitebox packing:
no
Single carton net weight:
20.00 lbs.
Single carton gross weight:
21.00 lbs.
Single carton size:
55.50" x 10.00" x 2.00" (D x W x H)
Units/master carton:
1
Master carton net weight:
20.00 lbs.
Master carton gross weight:
21.00 lbs.
Master carton size:
55.00" x 10.00" x 2.00" (D x W x H)
Flat capable:
yes
Vertical adjust:
yes
Horizontal adjust:
yes
VESA compatible:
yes
Universal mount:
yes
Maximum load:
400.00 lbs.
TV size:
between 60" and 100"
Horizontal holespacing:
between 2.95" and 2.95"
Vertical holespacing:
between 2.95" and 28.89"
Installation Manual:
Installation Manual:
Product Catalog:
CAD Drawing:
Product Image:
Product Image:
Product Image:
Product Cut Sheet:
EasyGrid ®:
VESA 200x200
VESA 300x200
VESA 300x300
VESA 400x300
VESA 400x400
VESA 500x400
VESA 500x500
VESA 600x400
VESA 600x600
VESA 660x320
VESA 800x400
VESA 800x600
VESA 1075x400
MSRP: $249.95
